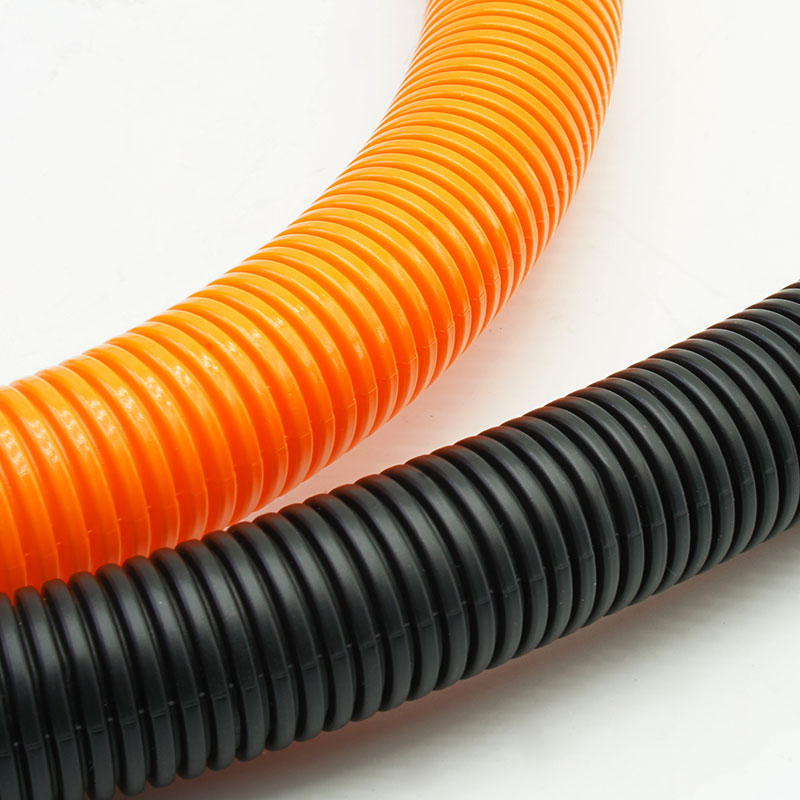

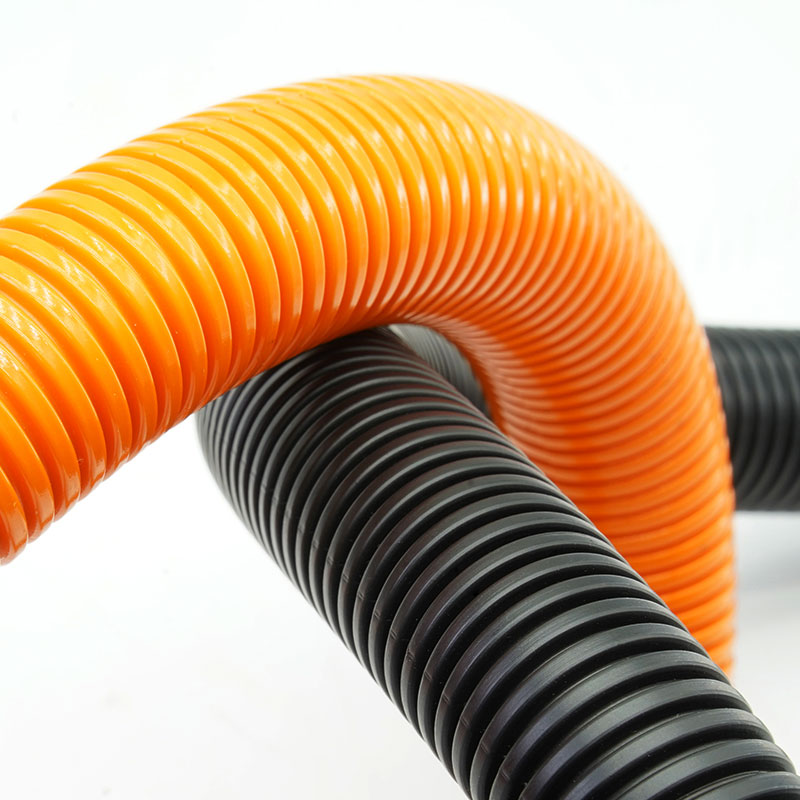

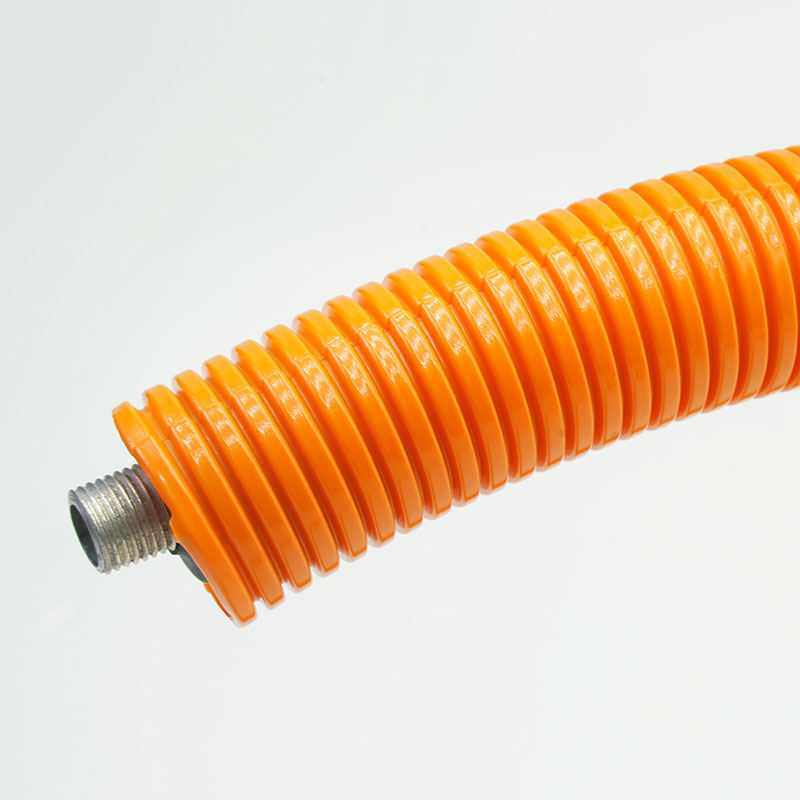

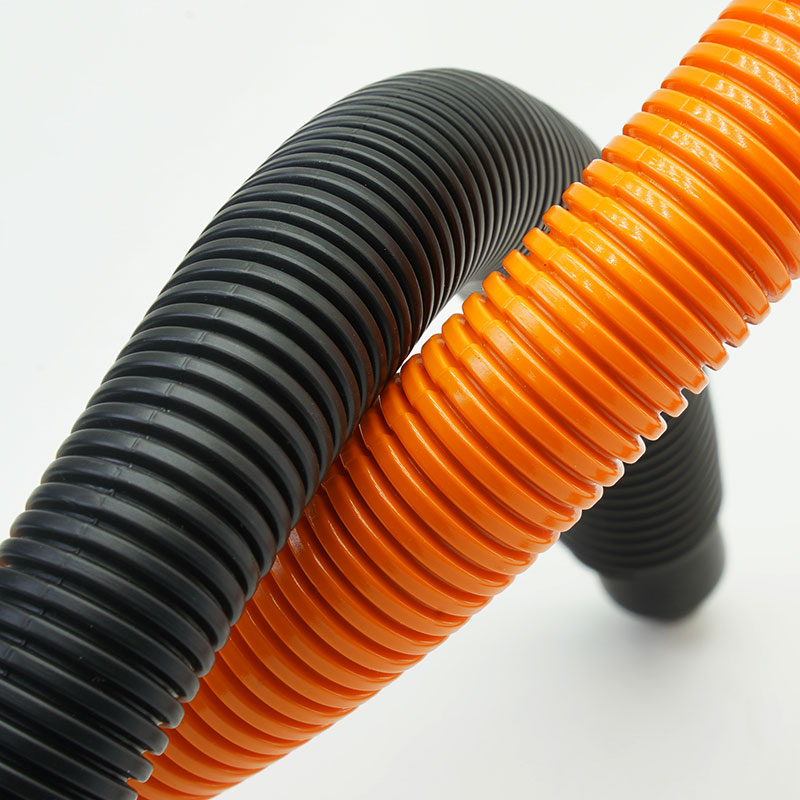

High Temperature Nylon Corrugated Wire Harness Loom

• Excellent Mechanical Strength

Nylon construction provides excellent mechanical strength and toughness, offering reliable external protection for wire harnesses in demanding equipment environments.

• Outstanding Wear Resistance

Excellent wear and scratch resistance helps reduce surface damage caused by contact between cables and surrounding components.

• High Fatigue Resistance

The nylon material offers good fatigue resistance, supporting cable protection applications that require flexibility and mechanical durability.

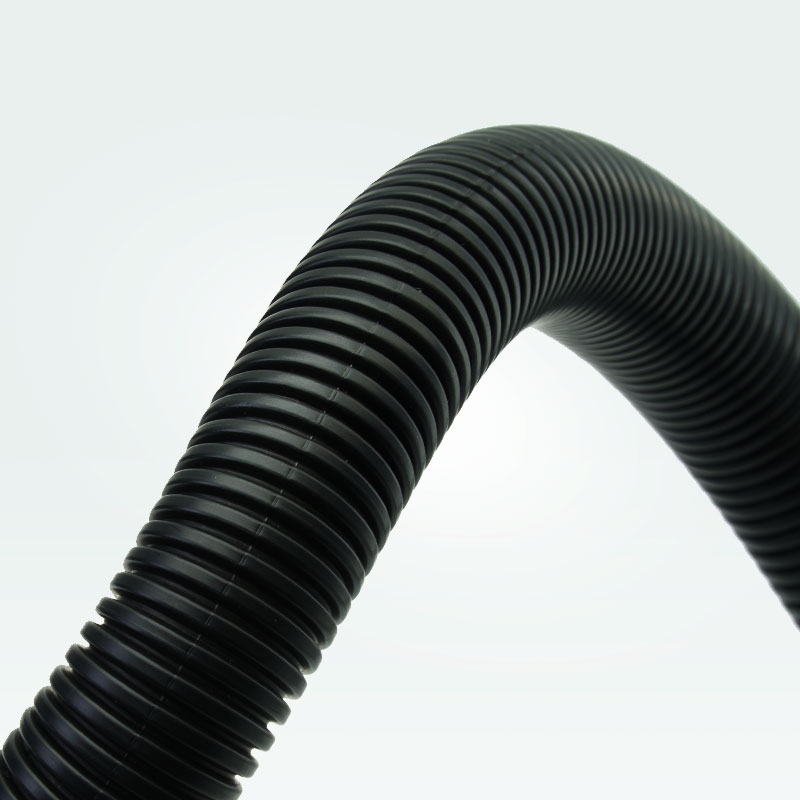

• Flexible Installation

The flexible corrugated structure is easy to bend and shape, helping cable harnesses accommodate equipment routing requirements.

• Resistance to Oil and Solvents

The tubing offers good oil, solvent and weather resistance for cable protection in varied equipment environments. Suitability should be confirmed for the specific media and operating conditions.

• Nylon PA Material

Manufactured from polyamide (PA), combining mechanical strength, toughness and wear resistance for a range of wire harness protection requirements.

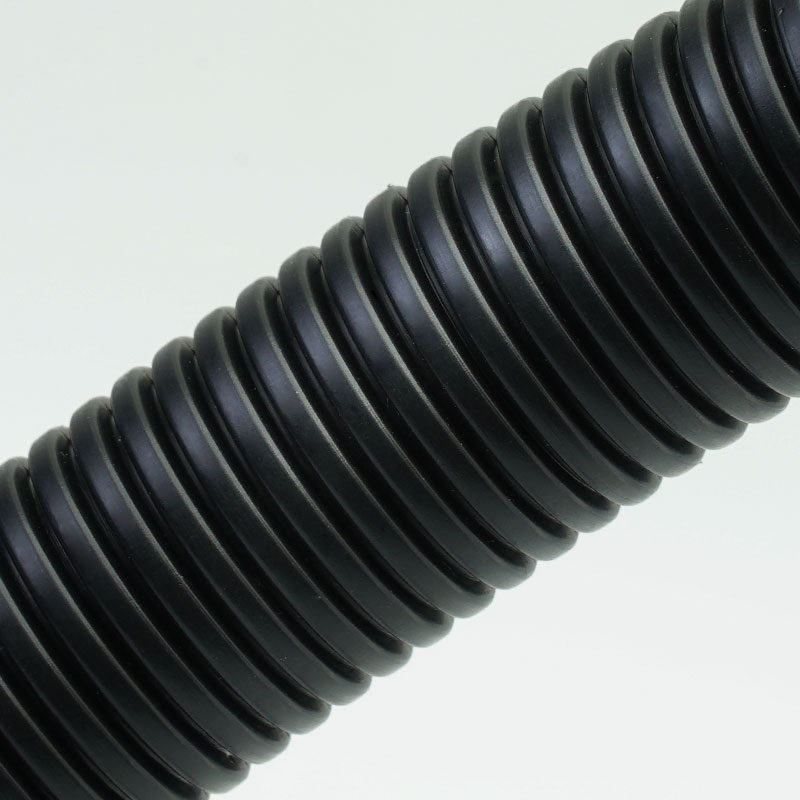

• Corrugated Structure

The corrugated profile combines structural support with flexibility, allowing the tubing to follow practical equipment routing paths.

• Wear, Scratch and Impact Resistance

Helps reduce the effects of external abrasion, scratches and impacts on enclosed cables.

• Fatigue and Tension Resistance

Offers good fatigue resistance and helps withstand mechanical stresses encountered during installation and use.

• Oil and Solvent Resistance

Provides resistance to oils and solvents, with actual compatibility depending on the specific media and exposure conditions.

• Electrical Insulation Properties

Nylon has electrical insulation properties and provides additional external cable coverage, but does not replace the insulation of individual conductors.

• Automotive Wiring Harnesses

Nylon non-split wire loom tubing helps protect automotive wiring harnesses from abrasion, scratches and impact during vehicle operation. Its flexible corrugated structure supports organized cable routing within available installation spaces.

• Engineering Machinery

Designed for cable protection in engineering machinery, WL-PA-N helps reduce mechanical wear caused by contact with equipment structures and surrounding components.

• Electrical Equipment

The tubing organizes and covers internal wiring in electrical equipment, helping maintain neat cable routing while providing additional external mechanical protection.

• Electronic Equipment

WL-PA-N supports wire organization and external protection in electronic equipment assemblies where flexibility, abrasion resistance and compact routing are important.

• Cable Routes Exposed to Mechanical Contact

The wear-, scratch- and impact-resistant construction is suitable for cable routes where contact with surrounding parts may cause surface damage. Application suitability depends on the actual operating conditions.

Measure the total outside diameter of the cable bundle and compare it with the available WL-PA-N inside diameters. Select a size that allows the wires to pass through without excessive force while avoiding unnecessary looseness after installation. If connectors or terminals must pass through the tubing, include their maximum dimensions in the assessment.Confirm the operating temperature, expected abrasion, impact exposure, vibration and routing space. Where oil, solvents or outdoor exposure are involved, verify material compatibility under the actual service conditions.

• Size Selection - Multiple standard inside diameters, outside diameters and wall thicknesses are available to accommodate different cable bundle sizes and installation requirements.

• Color Options - Alternative colors can be reviewed subject to material availability, production feasibility and order quantity.

• Packaging - Spool length, packing quantity, product labels and outer packaging requirements can be confirmed according to the order.

• Raw Material Verification - Nylon raw materials are checked against approved material specifications and production requirements to support consistent product quality.

• Dimensional Inspection - Inside diameter, outside diameter and wall thickness are checked against the specified dimensions and tolerances for each part number.

• Corrugated Structure Inspection - The tubing profile and structural consistency are inspected to support proper cable insertion and reliable installation.

• Surface and Appearance Inspection - Products are checked for visible cracks, deformation, contamination and other defects that may affect appearance or normal use.

• Product Identification and Packaging - Part numbers, dimensions, standard color, spool length and packaging details are checked against order requirements.

• Final Inspection - Product specifications, quantities and packaging condition are reviewed before shipment to support accurate order fulfillment.
